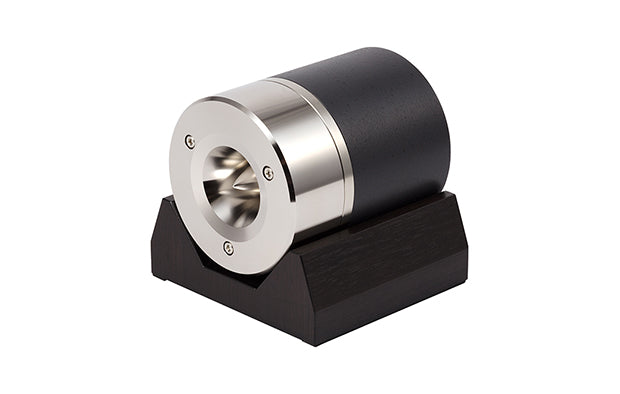

T500A MKIII has been reborn as a highest grade horn super tweeter, by adopting a newly developed ring-shaped pure magnesium diaphragm, precision cut solid brass horn and equaliser and a low distortion design Alnico internal magnetic circuit.
Adding the T500A MkIII extending the super-high frequency over 20kHz, your speaker system will improve the sound quality and play music with improved expressiveness from high to low frequency ranges.
Features & Benefits:
Ring-shaped pure magnesium diaphragm.
The newly developed ring-shaped pure magnesium diaphragm has low squeal peculiar to metal, and realizes penetrating ultra-high frequency reproduction by adjusting the material thickness to optimize the surface treatment.
Brass horn and equaliser with platinum coating.
Precision cut cylindrical shape solid brass horn and equaliser are fitted.
Platinum coated surface offers a natural and high transparent sound.
Alnico internal magnetic circuit.
Installed 2 layers Alnico magnets obtain a strong magnetic flux density, and the copper plated poll piece reduces the current distortion realizing a high definition audio reproduction.
Gold plated copper speaker terminals and copper silver alloy internal wiring.
Input terminals use gold plated copper. An extra-thick φ1.4mm copper silver alloy single wire is used for internal wiring to reduces sound deterioration.
Tungsten diaphragm ring.
Diaphragm ring to support the diaphragm is made of tungsten sheet that has high damping effect to reduce un-wanted vibrations and sound deterioration.
Tweeter base with walnut veneer finish.
A tweeter base comes as a standard accessory, which firmly supports the heavy tweeter. The base is finished in dark brown with beautiful and calm walnut veneer.
Specifications:
Impedance:............................8 ohm
Frequency Response:............7kHz – 40kHz (-10dB)
S.P.L.:....................................104dB/w(1m)
Input:.....................................15W (Nom.)
Cut Off Frequency:................3.5kHz
Recommended Cross-Over Frequency:
More than..............................7kHz (-12dB/oct.)
Net Weight:...........................5,150g
