Fostex Article no: FORM3

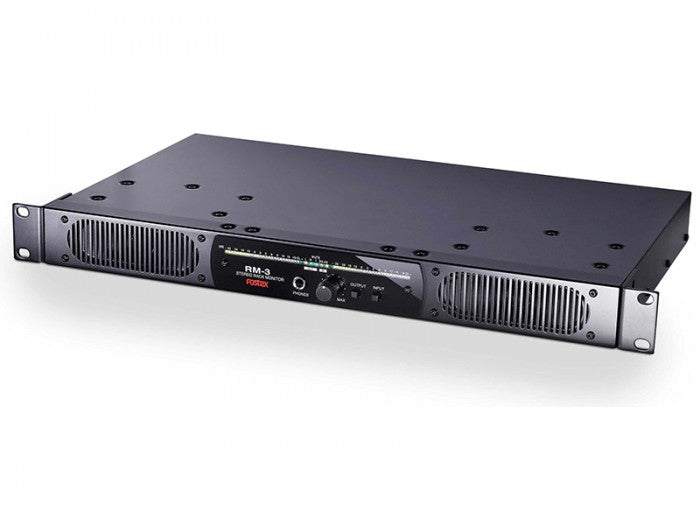

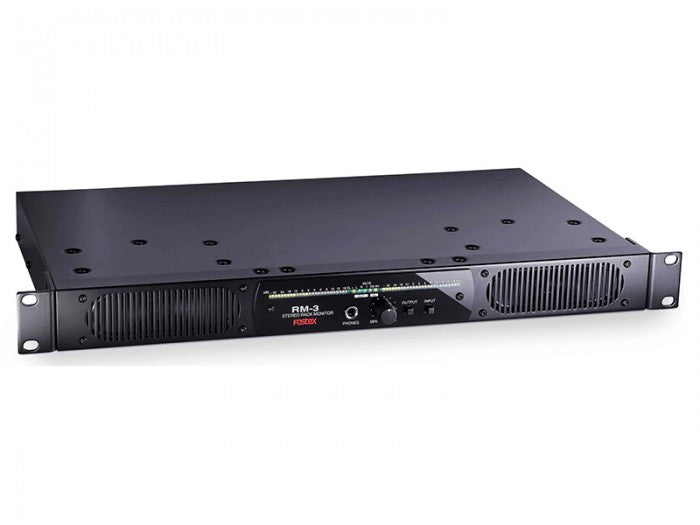

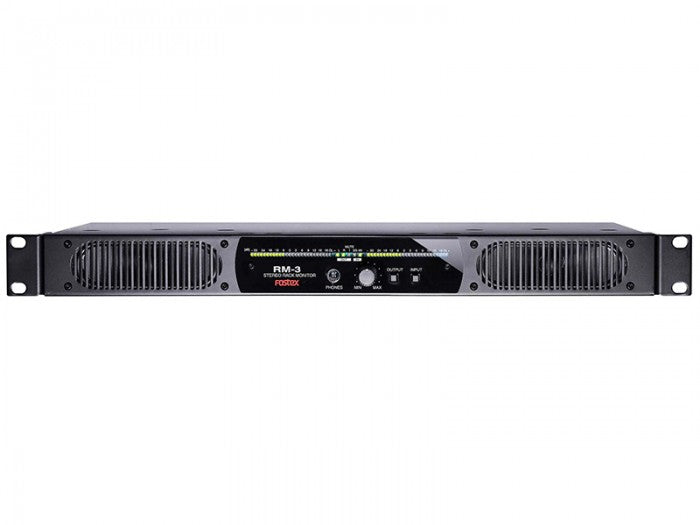

Model RM-3 is a rack stereo powered monitor speaker system to succeed the current model RM-2.

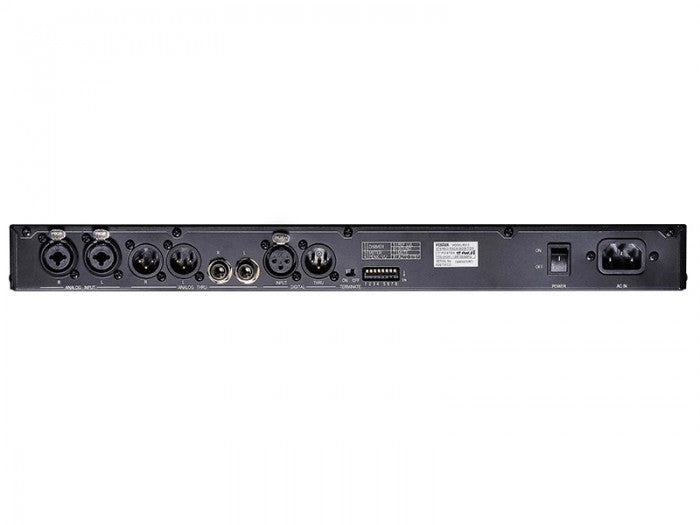

New features include a THRU OUT, brightness adjustment of LED, and auto memory of Input / Output status etc. via newly added DIP switch on the rear panel.

The RM-3 is the ideal solution for monitoring needs in various space-challenged environments such as machine rooms, video monitoring, surveillance, mobile and stationary control rooms, theme park applications where audio monitoring is needed in a compact environment.

In Detail

• Rack mount stereo monitor speaker system with built-in 10W+10W D-class amplifier and 110x40mm elongated shape speaker units.
• Accepts both Analog input (XLR & 1/4”TS phone) and Digital Input (AES/EBU).
• Headphone out for headphone monitoring. When switching from headphone out to speaker out or vice versa, the output signal fades in to avoid unexpected level difference.
• Mute switch works as total mute or -20dB attenuation
• Highly visible 26-dot LED meter (L&R) with 4-step brightness adjustment
• Flexible meter setting for both Analog and Digital inputs such as VU+Peak, VU+Peakhold, Peak+Peak hold and VU only.
• Reference level (0dB) is selectable between +4dBu and 0dBu.
• Audio characteristics can be selected between the conventional VOICE mode and new MU-SIC mode for wider frequency range music source.


Speaker Section

Units    110 x 40 mm antimagnetic cone speakers
Frequency Response:    200 Hz – 20 kHz

Amplifier Section

Rated Output Power    10W x 2
Digital Input:    XLR-3-31 connector (AES/EBU)
        Sampling Frequency:    44.1kHz to 96kHz
Analog Inputs:    XLR-3-31 connector (balanced)
        Rated input level:    +4/0dBu
        Input Impedance:    10k ohm or more
        1/4” Phone jack (unbalanced)
        Rated input level:    -10/-14 dBV
        Input Impedance:    10k ohm or more
Digital THRU    XLR-3-31 connector (AES/EBU)
Analog THRU    XLR-3-31 / 1/4” TS phone
Phones:        1/4” stereo phones
        Adapted load impedance:    16 ohm or more
        Maximum output:    20mW + 20mW (32ohm, 1kHz)
Level Meter    26-dot LED x 2
        Reference Level:        Digital -20dBFS
Analog XLR +4/9dBu; TS phone -10/-14dBV
Distortion (T.H.D.)    0.1% or less


Dimensions:    482 (H) x 44 (W) x 284 (D) mm  (including protruding parts)
Weight:    approx. 3.5 kgs
Power Requirement:    AC 100V to 240V 50/60Hz
Power Consumption:    10 W (0.5W  or less in standby mode)
