Description

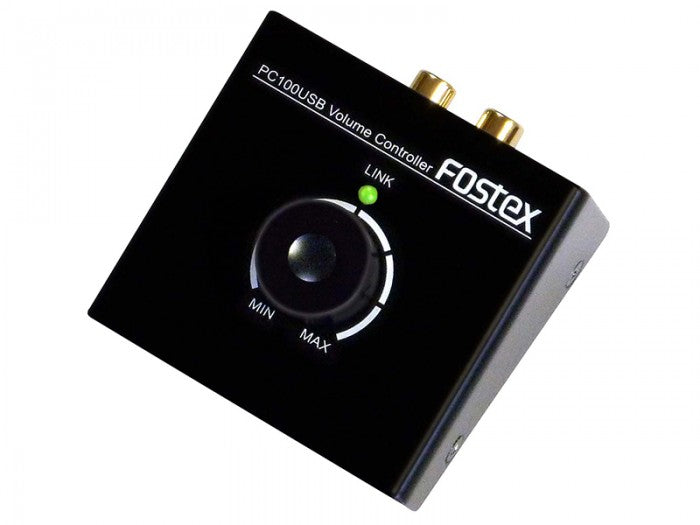

Volume Controller with USB DAC
The PC-100USB is a high grade version of PC-1(W) that converts USB digital audio signal to analogue signal to feed to powered monitor speakers such as PM0.4n or PM0.5n for high quality reproduction of computer audio.
The volume for the left and right monitors can be controlled simultaneously at your handy position.
It also offers a headphone out (stereo mini) for head-phone monitoring.
Specifications

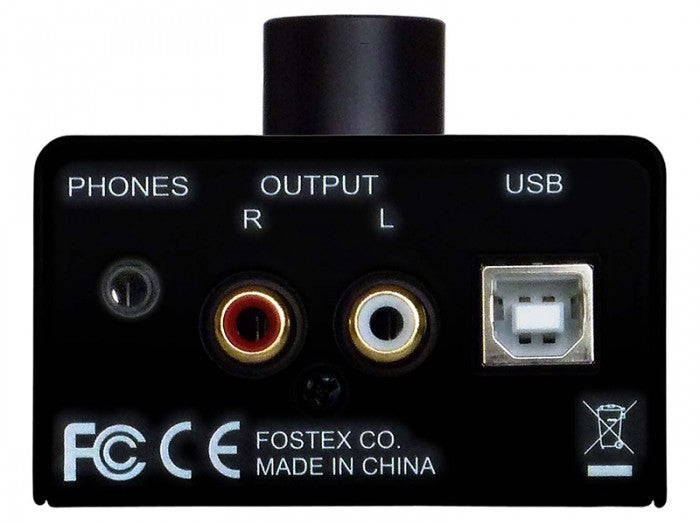

[USB] connector
Connector type: RCA jack
Sampling frequency (Hz) / Bit rate: 32k, 44.1k, 48k / 16bit
[OUTPUT (L,R)] connectors
Connector type: RCA jack
Nominal output level: 6dBv
Applicable load impedance: 10k ohm
[PHONES] connector
Connector type: 3.5mm stereo mini jack
Maximum output power: 5mW + 5mW (32 ohm load, THD < 0.5%)
Applicable load impedance : 32 ohm or more
General
Power requirement: USB bus power (5V, 500mA)
Max Power Consumption: 2.5W
Dimensions: 66 (W) x 44 (H) x 70 (D) mm
Weight: Approx. 190g
Supplied accessories: USB2.0 cable (Type A male to Type B male) x 1, RCA – RCA cable x 2
