Description
The 6301-series have been in the market since 1982; the standard for active monitoring in broadcast and production facilities.
A new re-design for the 6301 speakers with the latest D-class power amplifier; and a new driver unit featuring an energy saving “auto stand-by” function makes it the 6301 NB an ultra-rugged option for monitoring.
Note: Sold as a single speaker; (6301 Professional Studio Monitors are sold as a single speaker for multi-channel monitoring requirements) not in pairs.
In Detail

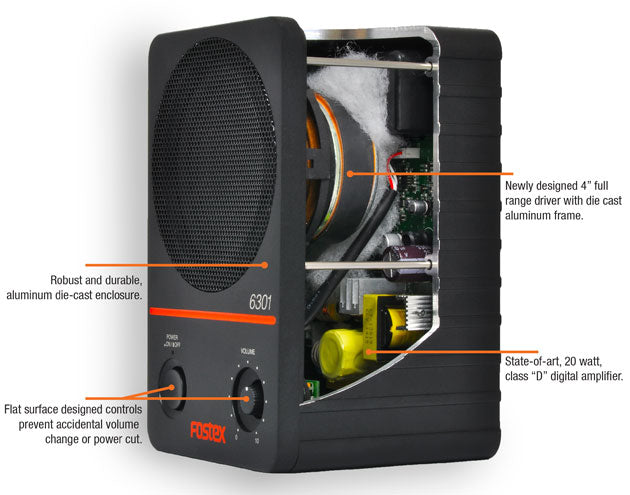

• 20W D-class power amplifier for higher output level and less power consumption with no heat sink
• Dedicated 4-inch full range driver for clear audio reproduction
• Traditional rugged enclosure of aluminium die-cast with the physically identical height and width to the current B-series
• Flat panel design to avoid inadvertent power-off or level change
• Auto Stand-by mode (compliant to ErP directive) for energy saving

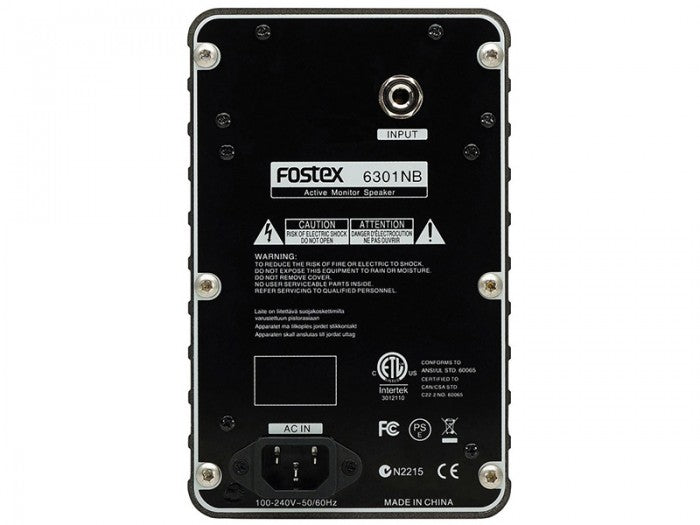

• Detachable IEC type power inlet with multi-voltage power handling

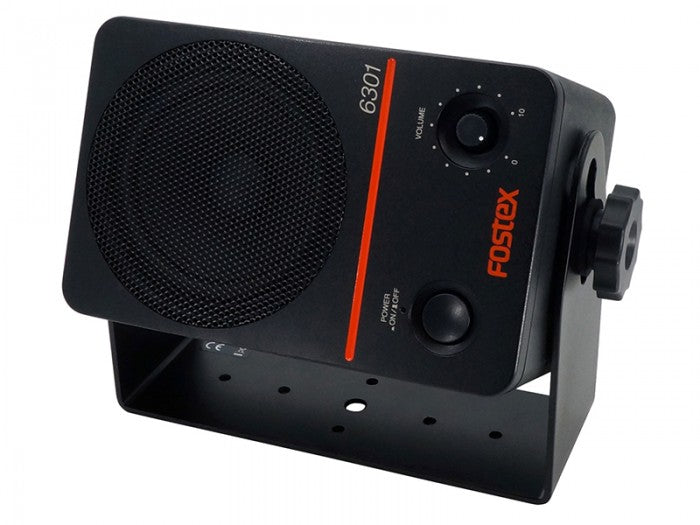

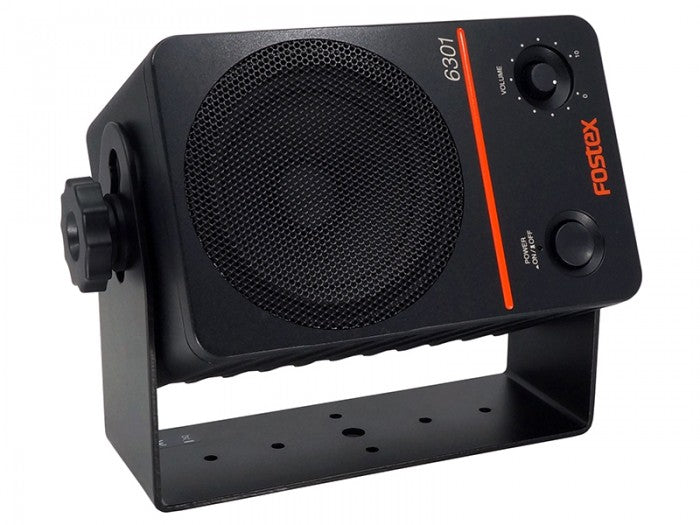

• Newly designed mounting bracket (EB-6301) for wall mounting with variable angle adjustments
Specifications
SPEAKER SECTION
Enclosure type: closed
Unit: 4” full range
Frequency response: 70 Hz – 15k Hz
Sound Pressure Level: 85dB / W (1m)
Maximum SPL: 98dB
AMPLIFIER SECTION
Inputs
Connector: 1/4” TS Phone (unbalanced)
Input Impedance: 10k ohm or more
Rated output: 20W
Distortion (T.H.D.): 0.05% (1kHz / 1W output)
Residual Noise: -70dBV or less (NB/NE/NX). -65dBV (DT)
-65dBV or less (ND)
Input Sensitivity: 1/4” TS phone: -14dBV (0.2Vr.m.s.)
Auto Stand-by: active after approx. 25 min. of continuous input lower than the threshold level
GENERAL
Dimensions: 120 (W) x 189 (H) x 120 (D) mm
Weight: NB: 2.2kgs
Power Requirement: AC 100 – 240V (50/60Hz)
Power Consumption: 10W (less than 0.5W in stand-by mode)
